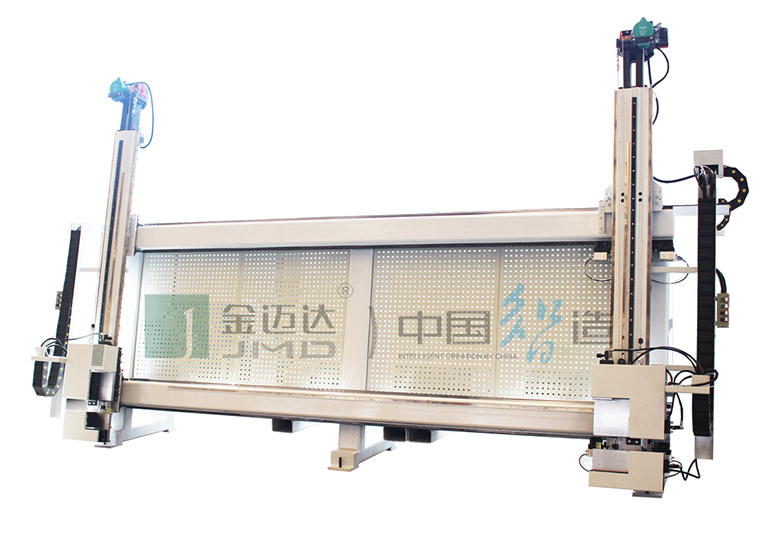

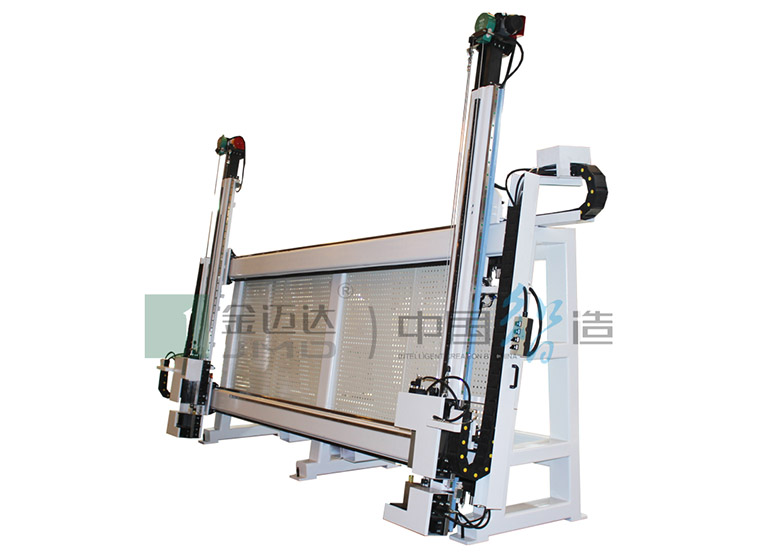

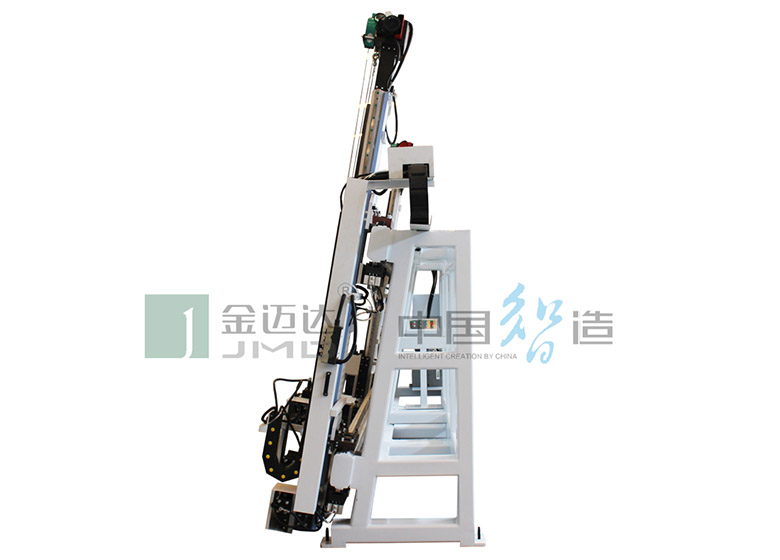

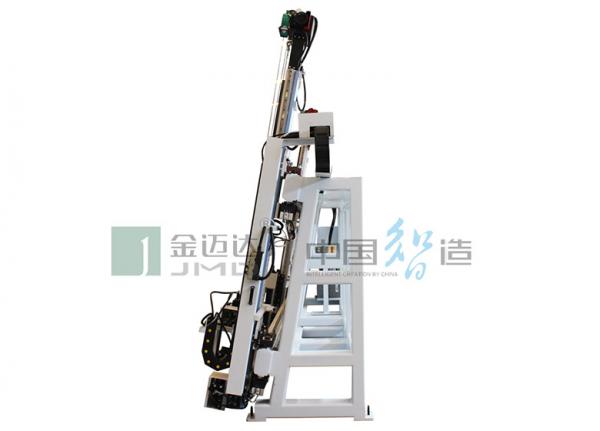

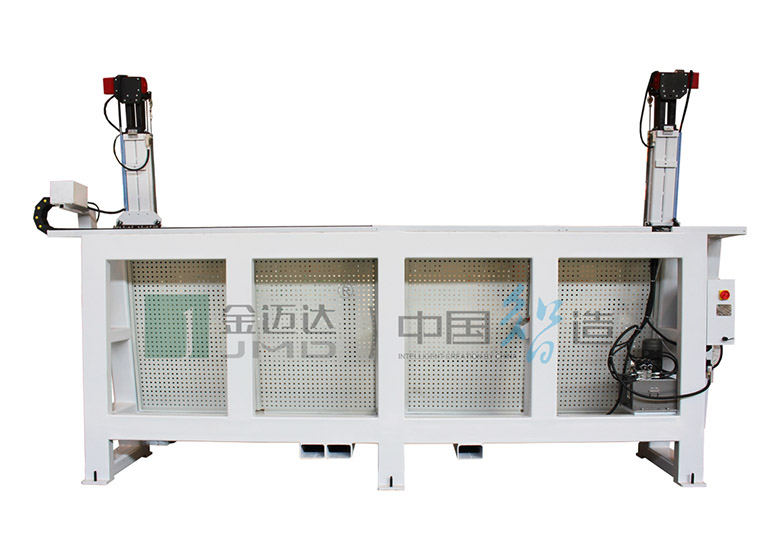

LMZK4-4200
Wooden Window & Door Frame Machine for Wood Doors and Windows
Chassis brand: JMD
The min framing size: 300×300mm
The max framing size: 4200×2400mm
1. This equipment is used for crimping solid wood doors and windows with mortise joint, mainly for the four corner pressure keeping.
2. The machine adopts the heavy welded frame, precision slide support and rectangular rack positioning with good rigidity and high precision.
3. The positioning rectangular rack pitch is small and east to make fine adjustment, adopting pneumatic locking and convenient location.
4. four groups of hydraulic cylinder as double acting cylinder has good orientation.
5. Crimping pressure is even, pressure holding with small deformation and high precision.
