    LJG2S-500*6500

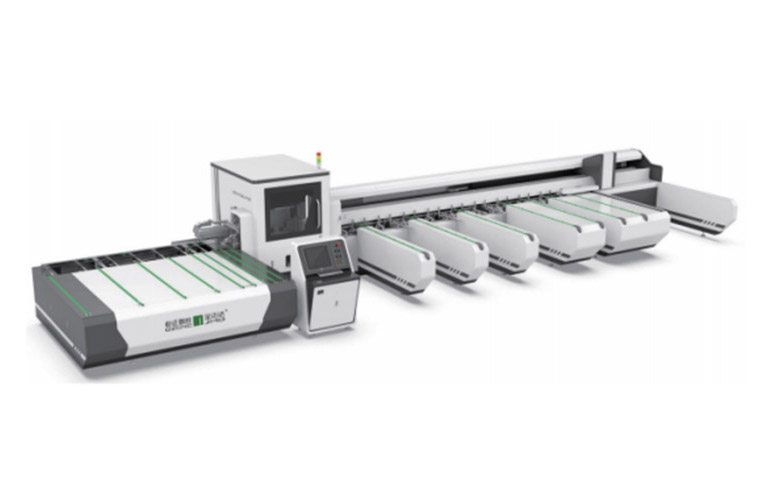

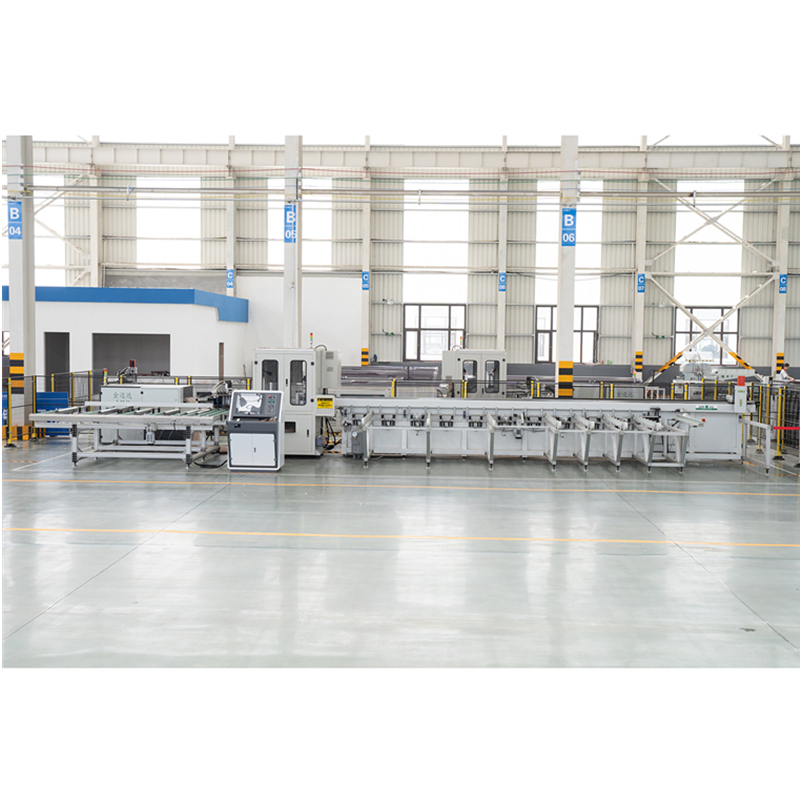

    45 Degree CNC Cutting Center for Aluminum Doors and Windows

    Chassis brand: JMD
    Cutting angle: 45 Degree
    Cutting section: 125mm*150mm(WxH)

    1.Specially designed to automatically cut aluminum window profiles at 45degree, with high efficiency.
    2.Cutting stroke can be adjustable according to profile’s size to improve the cutting efficiency.
    3.The manipulator speed is CNC controlled. The control system can save the profiles’ data.
    4.Equipped with Schneider CNC system and optimization software for windows.
    5.Minimize the waste of aluminum profile, saving costs.
    6.Pulse blowback chip collector, recovers the cutting chips with low noise
    7.The insolation transformer make it very safe to use the machine
    8.Blade-driven motor: SEIMEC
    9.CNC system: Schneider
    10.Low-voltage electric components: Schneider
    11.Pneumatic components: AirTAC
    12.Cables & wires: YiChu
    13.Gear & rack: YYC
    14.Linear guide rail: HIWIN
    15.Guide screw: TBI
    16.Blade: KANEFUSA

    Aluminium Profile Cutting Machine, CNC Cutting Center, CNC Cutting Machine For Metal & Wood, CNC Profile Cutting & Machining Center

    CNC stands for Computer Numerical Control, which is a type of technology that creates products through subtractive manufacturing. Put simply, CNC is a large and diverse family of machines that are mostly controlled by a computer program to perform tasks that otherwise would have been done manually. Another common feature of all CNC machines is that they can move their tools in at least two different directions. The directions are called axes and the more of those a machine has, the more complicated it is. There are three possible linear axes: X, Y and Z, and three additional rotary axes: A, B and C.

    What is CNC Cutting Center?

    45 Degree aluminum profile cutting machine for aluminum doors and windows

    Power supply

    380V/3Phase/50Hz

    Total power

    15kW

    Working air pressure

    0.5~0.8MPa

    Blade specification

    500x4.4x3.6x30x120

    Cutting angle

    45°

    Cutting length

    150mm~6200mm

    Cutting range

    150mm x 125mm(H?x W)

    Cutting length tolerance

    ±0.1mm

    Cutting angle tolerance

    ±0.1°

    Repeat position accuracy

    ±0.05mm

    Cutting surface roughness

    Ra12.5μm

    Cutting surface flatness

    ≤0.1mm

    Air consumption

    120L/min

    Feeding speed

    0~60m/min

    Discharge speed

    0~50m/min

    Blade-driven motor rotating speed

    2860rpm

    Blade feeding speed

    0~15m/min

    Output

    15s/?p?c

    Total weight

    5000Kg

    Overall size

    13.2m x 3.8m x 2.1m(L?x?W?x?H)
