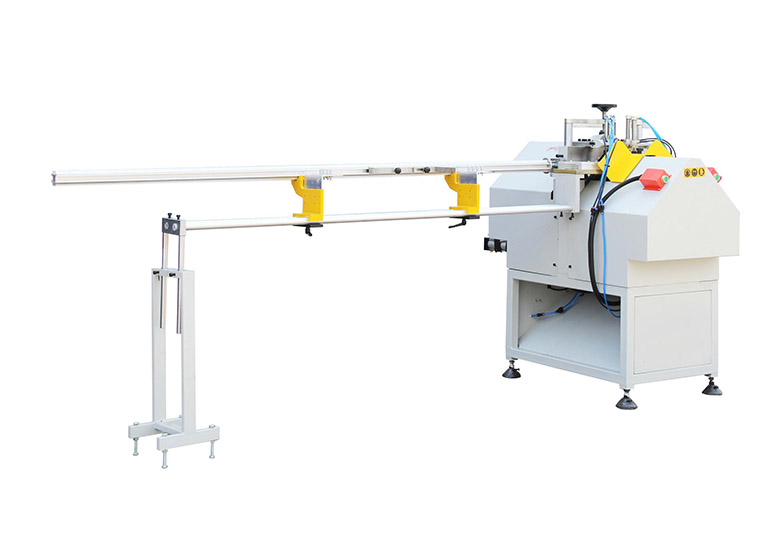

    SJBW-1800

    Glazing Bead Saw

    Chassis brand: JMD
    Cutting Height: 33mm
    Cutting Width: 100mm

    1. Special measurement scale, easy to operate.
    2. One time two pieces of glass batten cutting.
    3. Design with adjustable mould, change the profile but not change the mould, avoid reinvestment and reduce the production preparation period.
    4. Adjustable positioning plate design with fine tuning device so that made the interior corner sealed after assembling the bead.

    Air Pressure

    0.5MPa~0.8MPa

    Air Consumption

    20L/min

    Input Voltage

    380V 50Hz

    Input Power

    1.1KW

    Spindle Rotary Speed

    2800r/min

    Cutting Height

    33mm

    Cutting Width

    100mm

    Cutting Length

    320mm~1800mm

    Overall Dimension

    2500mm×1380mm×1300mm

    Weight

    250kg
