45 degree Cutting Center: Aluminum Cutting Center

Features

1.?Fixed cutting angle 45degree ensures high efficiency and stability.

2.?Cutting?stroke can be adjustable according to profile’s size to improve the cutting efficiency.

3.?The manipulator speed is CNC controlled. The control system can save the profiles’ data.

4.?Schneider CNC system and industrial PC ensure the machine stably run in harsh environment for long time.

5.?The structure of machine is welded with high-quality steel and is age-processed, ensure the manipulator works?with high precision, high speed and high stability.

6.?Minimize the waste of aluminum profile, saving costs: every cutting saves 5~10mm of aluminum profile

7.Eery cutting takes 10~13seconds. So it can cut 2200~2600pcs of?segments?within 8hours.

8.?Equipped with isolation transformer, ensure the stable running under unstable power supply

9.?Compared with double miter saw, the cutting center can cut down the labor costs, requirements of operator’s skills and error rate

?

Main configuration

1.?Numerical control system: Schneider(including PLC & servo system)

2.?Linear guide rail: HIWIN

3.?Rack & pinion: YYK

4.?Precision screw: TBI

5.?Cutting motor: Ruandawords

6.?Pneumatic components: AirTAC (cylinder, solenoid valve, pipeline, joint)

7.?Low-voltage electrical appliances: Schneider, Omron, Honeywell

8.?Main wire & cable: Echu

9.?Diamond saw blade: Zhiguang

10.?Precision reducer: Faston

?

Technical Parameters

1.?Power supply: 380V/3Phase/50Hz? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?11. Cutting surface roughness: Ra12.5μm

2.?Total power: 12.7kW ???????????????????? ??? ? ? ? ? ? ? ? ? ? ?12. Cutting surface flatness: ≤0.05mm

3.?Working air pressure: 0.5~0.8MPa? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?13. Air consumption: 120L/min

4.?Blade specification: 500x4.4x3.3x30x120? ? ? ? ? ? ? ? ? ? ? 14. Feeding speed: 0~70m/min

5.?Cutting angle: 45° ??????????????????????? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 15. Discharge speed: 0~70m/min

6.?Cutting length: 150mm~6500mm? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?16. Cutting motor rotating speed: 2860rpm

7.?Cutting range: 150mm x 125mm(HxW) ???????17. Blade feeding speed: 0~15m/min

8.?Cutting length tolerance: ±0.1mm/1000mm? ? ? ? ? ? ? ? 18. Output: 10~13seconds/cutting

9.?Cutting angle tolerance: ±0.1°? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?19. Total weight: 5000Kg

10.?Repeat position accuracy: ±0.05mm? ? ? ? ? ? ? ? ? ? ? ? ? ? 20. Overall size: 13.2m x 3.8m x 2.1m(LxWxH)

?

Pulse Blow-back Chip Collector

?

?

Technical parameters

Power supply: 380V, 3Phase, 50Hz? ? ? ? ? ? ? ? ? ? ? ?Blower motor power: 3.7kW

Blower motor rotating speed: 2860rpm? ? ? ? ? ? ? Working air pressure: 0.5~0.7MPa

Normal air consumption: 90L/min? ? ? ? ? ? ? ? ? ? ? ? Maximum static pressure: 4000/5000Pa

Maximum air volume: 48m³/min? ? ? ? ? ? ? ? ? ? ? ? ?Filter accuracy: 0.1mm

Dust bucket capacity: 170L? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Inlet diameter: 100mm

Noise: 57 dB? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Overall size: 1700*1075*1300 (L*W*H)

Weight: 400Kg ???????????

?

Configuration

Turbo blower: Zamdet? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Pneumatic components: AirTAC

Low-voltage electrical appliances: Schneider, Omron? ? ? ? ?Main wire & cable: Echu

?

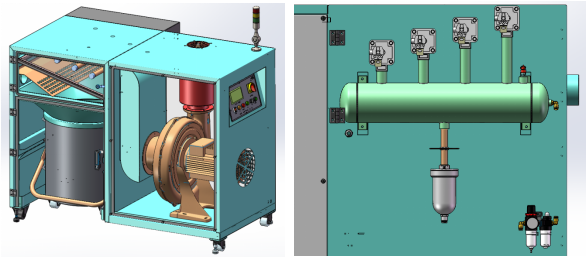

Structure

?

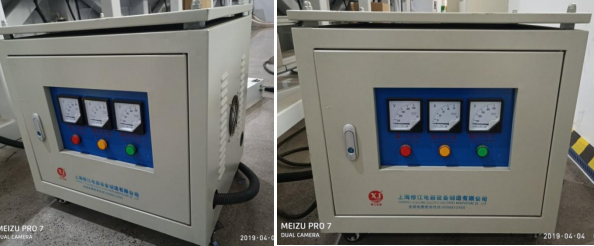

Isolation Transformer

?

Rated power: 30kVA ?????????? ??Input/output voltage: 380V/380V

Insulation class: F? ? ? ? ? ? ? ? ? ? ? ? ? ?Frequency: 50~60Hz

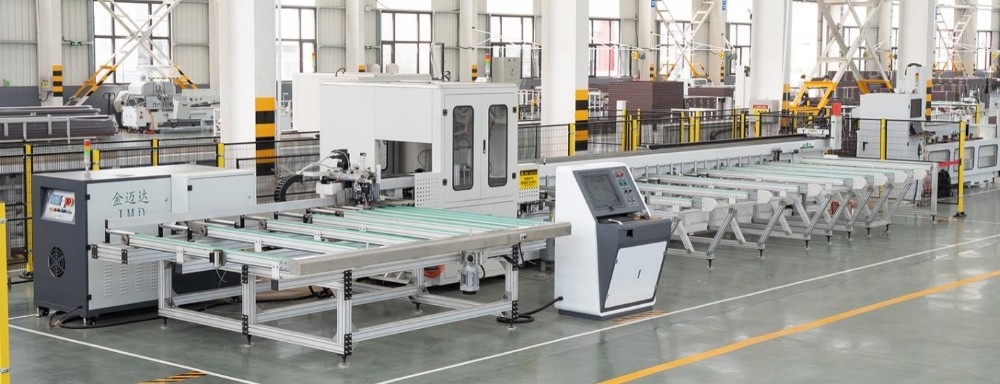

Guard Fence
