    LJZJA-90

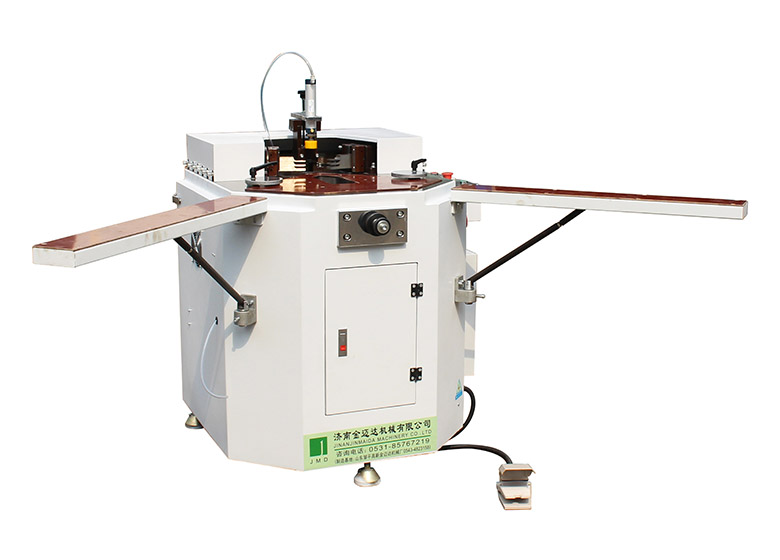

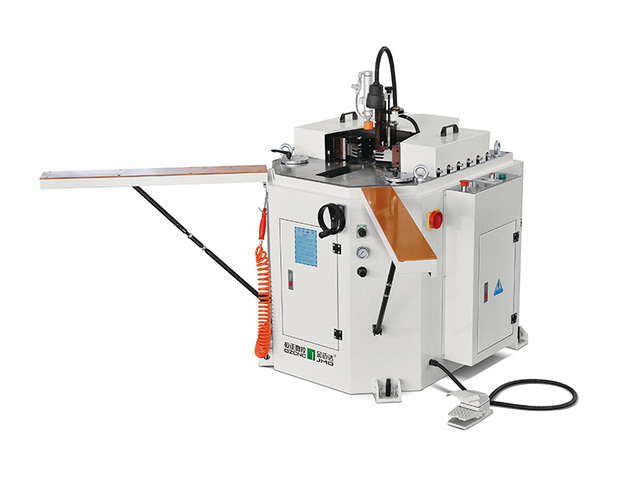

    Aluminum Door & Window Light Duty Crimping Machine

    Chassis brand: JMD
    Profile processing width: 120mm
    Oil tank volume: 17.5L

    1. Used for jointing the corners of aluminum windows & doors at 90°

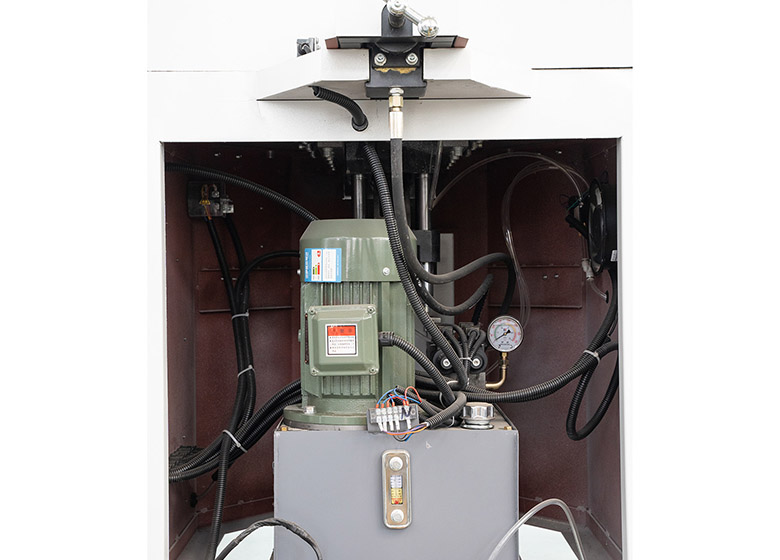

    2. Crimping blade driven by hydraulic system with high stability
    3. Safe & easy to operate and maintain
    4. The inner positioning device is beneath the worktable when the machine is not working. This design makes it convenient to load and unload the window frames and makes this machine suitable for large-size windows and doors.

    Power supply

    380V/3Phase/50Hz

    Input power

    1.1kW

    Air pressure

    0.5~0.8Mpa

    Air consumption

    2L/min

    Rated oil pressure

    10Mpa

    Oil tank?volume

    17.5L

    Profile processing width

    120mm

    Cylinder stroke

    0~68mm

    Overall dimension

    830*1000*1200mm

    Weight

    400Kg
