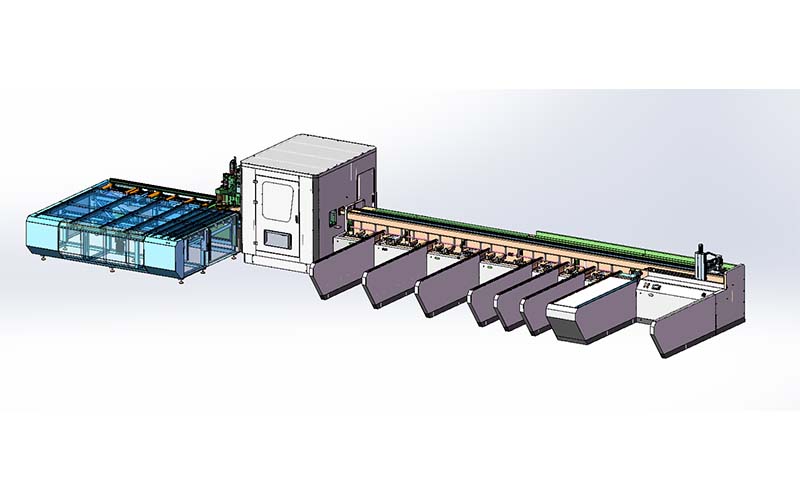

LJG1-CNC-500X6500
Arbitrary Angle Cutting Center
Chassis brand: JMD

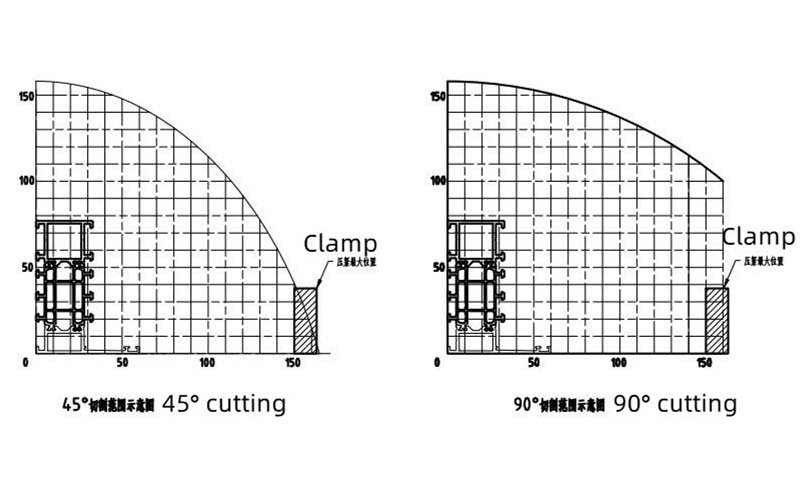

Cutting angle: any angle between ± 45 °
Cutting length: 300~4600mm(Maximum to 6500mm)
LJG1-CNC-500X6500 is a new generation of CNC cutting center developed by JMD Company. It is mainly designed to cut thermal break aluminum doors and window profiles such as frames, sashes and mullions. It can also be used to cut some industrial aluminum profiles. The cutting host is equipped with a single saw blade which rotates left and right alternately to complete the profile cutting. The saw blade is controlled by the cam roller rotating platform mechanism which is driven by the servo motor . The saw blade cutting lifting mechanism adopts a 45°sawing swing arm structure.
