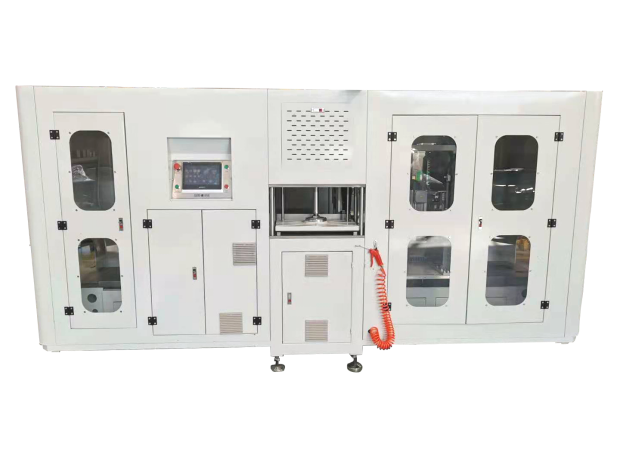

1.?The seven-axis CNC end milling center is a new generation of end milling center developed and designed by our company with the introduction of international advanced technology. The center is widely used in thremal break aluminum doors and windows, all kinds of light industrial aluminum profile NC intelligent optimization section cutting.
2.?The machine bed of the end milling center is all welded with industrial rectangular tube profiles, and after welding, the internal stress is removed by professional and effective treatment.
After professional finishing of numerical control equipment, to ensure the stability of the running accuracy and speed of the whole machine.
3.?High rigidity and high precision spindle: air-cooled spindle motor.
4.?Using Italian imported spindle motor, stable performance, high-speed, high-precision, the highest operating speed industry standard 2800r/min.
It is suitable for the forming and processing of the end face and step surface of all kinds of profiles.
5.?Italian PEK guideway and rack, high strength ball screw are adopted.
The imported high-precision locking nut has the advantages of small lengthening clearance, good guidance and increased service life. after pre-tightening and stretching, the ball screw greatly increases the transmission rigidity and eliminates the influence of thermal deformation during movement. as a result, the positioning accuracy and positioning accuracy of the machine tool are ensured. Five-axis CNC structure, ball screw feed, no need to adjust the tool position, full NC completion. The end face of the profile can be milled to the desired mortise size. Can remember several groups of programs, according to the profile into the program, direct processing.
6.?The machine tool is equipped with a sealed guideway shield to effectively protect the guideway and screw and prolong its service life.
7.?The CNC control system adopts China Huichuan industrial control system, which can process aluminum alloy profiles, PVC profiles and alloy profiles. The system has high speed and high precision, and supports multi-axis linkage.
Huichuan servo motor is used in each shaft feed motor, which ensures the advantages of high stability, high speed and high precision of the control system.
The feed is driven by servo motor, the speed position is adjustable, the cutting feed is stable and uniform, and the machining precision is high and the surface quality is good.
8.?The whole machine adopts Chinese Zhengtai electrical components to ensure processing stability and service life.
9.?The wiring in the electric cabinet is in line with the national electrical standards to ensure that the control system is not subject to external interference during operation.
Better ensure production safety.
