This machine can cut the aluminum window profiles and some industrial aluminum profiles and drill, mill holes on four-side of the profiles. The machine can seamlessly connect with a variety of window design software to meet the needs of different window manufacturers

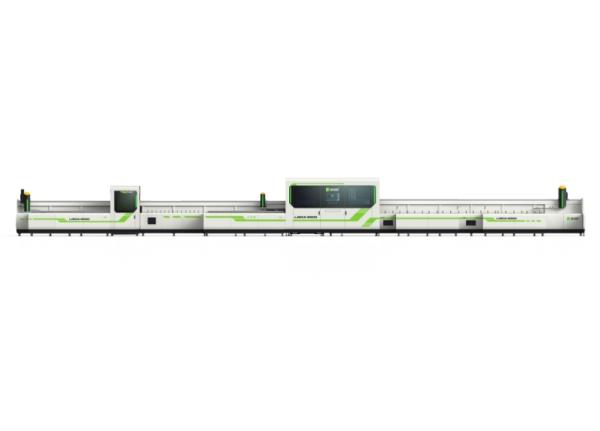

Products: Double-Station Aluminum Machining Center
Description: Aluminum CNC Profile Machining Center, CNC Maching Center for Aluminum Windows
Machine Parameters
Power supply: 380V, 3phase-4wire, 50Hz
Drilling or milling spindle rotating speed: 9000r/min
Drilling or milling spindle power: 3.0kW
Cutting spindle rotating speed: 2860R/min
Cutting spindle power: 3.0kW
Manipulator speed: 0-120 meters/min
Milling feed speed: 0-15 meters/min
Cutting feed speed: 0-20 meters/min
Working air pressure: 0.5-0.8MPa
Air consumption: 200L/min
Total power: 55KW+dust collector 3.7kW
Total weight: 15 tons
Configuration
Motion control system: INVOVANCE (servo, motion controller, inverter)
Pneumatic component: AirTAC
Low-voltage electrical: Siemens, Schneider, Omron, Honeywell
Linear guide rail: HIWIN
Rack & Gear: YYC
Ball Screw: TBI
Precision planetary deceleration: DESBORE
Spindle Motor: Rundawords
Flexible wire and cable: Echu
Lubrication System: BAOTN
Silent drag chain system: HUASITECH
