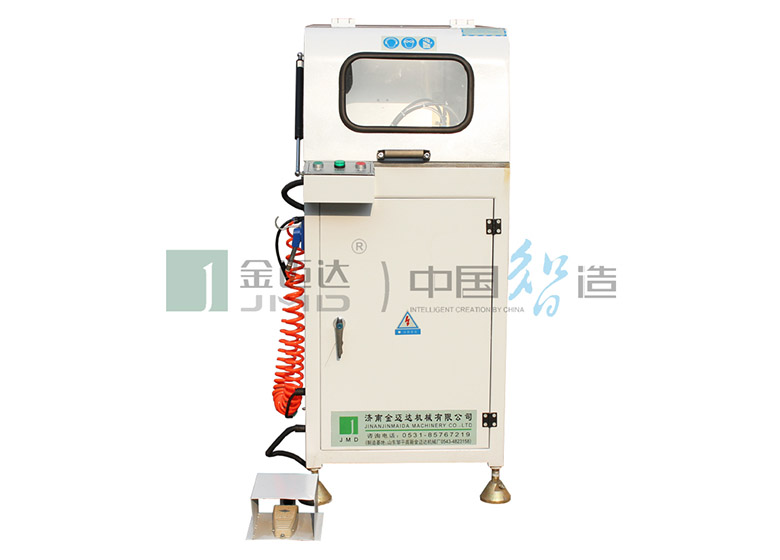

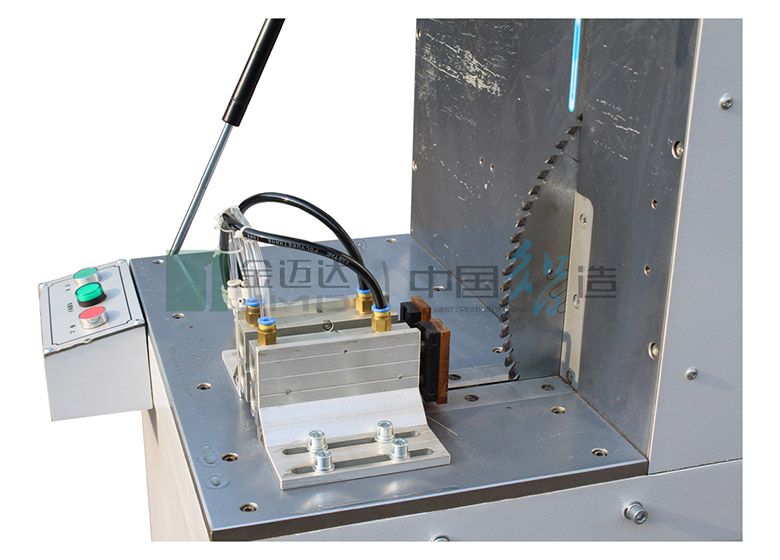

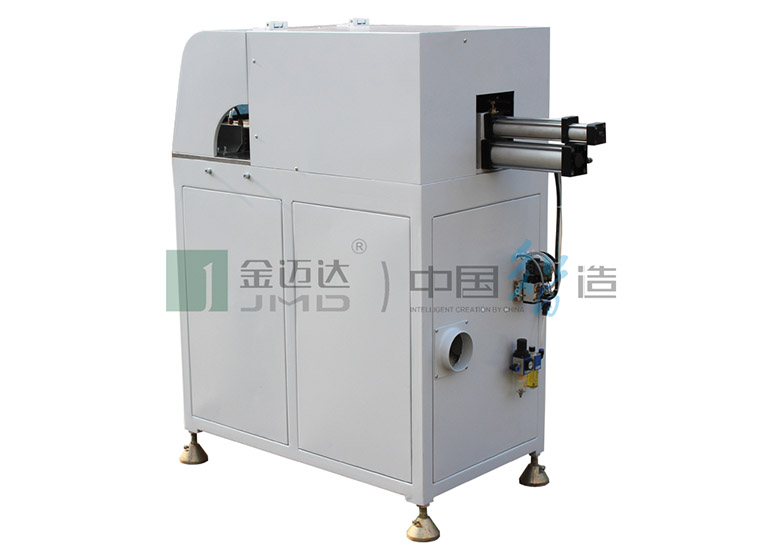

    LMJ-450

    Single Head Wood Saw

    Chassis brand: JMD
    Cutting range (W*H): 120×200mm
    Blade rotational speed: 3200r/min

    1. Used for 90° wood cutting to make solid wood win-door.
    2. Drive by the professional high speed spindle box.
    3. Blade feeding is powered by air-liquid damping with smooth cutting.
    4. Adopt professional carbide saw blade for wood cutting and also can use carbide saw blade for aluminum for smooth cutting.
    5. Equipped with digital device to ensure the precise cutting size.

    Power supply

    Three-phase four wire AC380V ?50Hz

    Input power

    2.2kW

    Air pressure

    0.5~0.8MPa

    Blade rotational speed

    3200r/min

    Saw blade specification

    450*4.0*3.3*30Z=100

    Cutting range (W*H)

    120×200mm

    Overall dimension

    7600×1480×1380mm

    Weight

    330kg


    Tag: #Cutting 90 degree angle, #Wooden door frame making machine, #Wood casement windows machine
