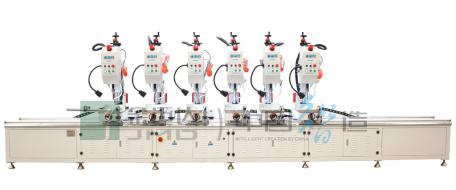

About Multi Head Drilling Machine

This machine adopts 6 set drilling head, each head adopts three-axis drill pack for drilling holes, which can be combined to use according to the hole diameter on the drilling bit rocker arm and center distance.

Six sets drilling head was installed on the bed guide rail,which can move right-left and pneumatic locking arbitrarily；

Six sets drill bit drilling holes can be either single action or linkage, especially fit for mass production；

Head feeding adopts cylinder and damping cylinder, which make the head feeding stable, speed can be adjusted. Each cylinder with 3 sets magnetic-switch to control work feeding and feeding back.

Six sets drill bit can drill holes together efficiently.

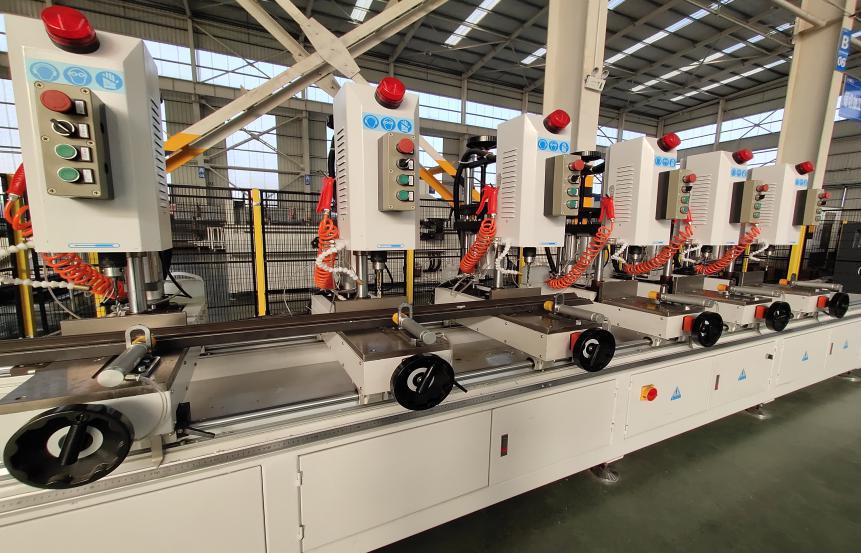

This machine is mainly composed of six sets of drilling head, bed electrical control system and pneumatic system; Each drilling head is composed of motor, three-axis drill pack, sprayer, pneumatic feeding, workbench, profile clamping cylinder, profile support structure, head locking structure and electrical operating panel. PLC control, all the heads working can be single action and linkage,it depends.
